Looking to buy the BA20D LED headlight for the Piaggio Zip, Vespa LX, or other scooter?

Extended Black Friday promotion! For a limited time, you can still enjoy 50% off this bestseller!

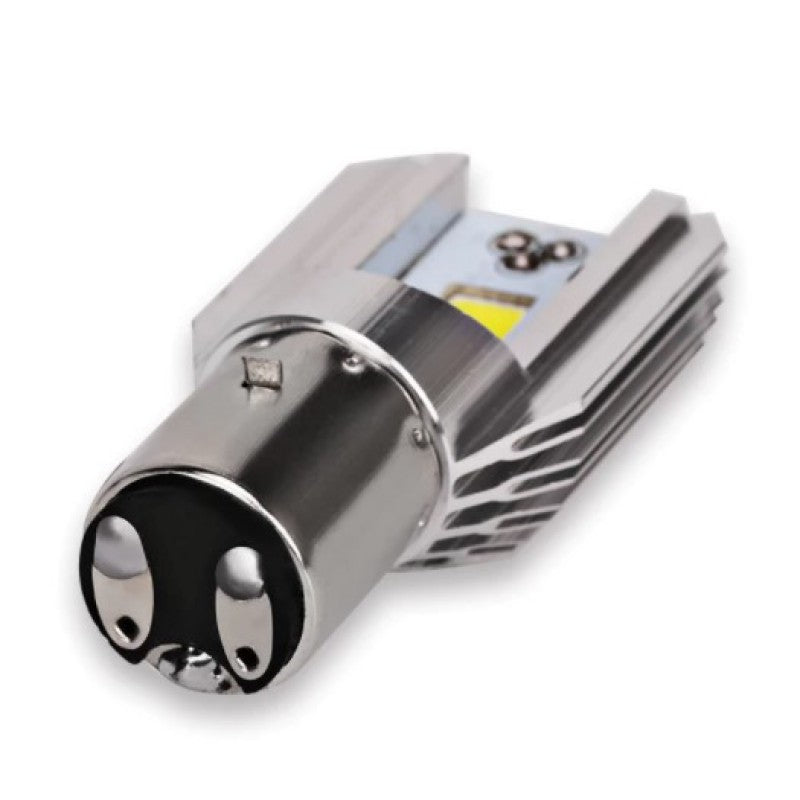

High-quality headlight for the Piaggio Zip, with bright, white light (xenon look). For a cool look, more light output, and a long lifespan. This headlight has both high and low beam and works with the scooter's original light switch. This is the best LED headlight on the market for the Piaggio Zip. Thanks to its high quality and very competitive price, De Scooter Shop has been supplying this LED headlight to both consumers and scooter shops for years. Watch the installation video below.

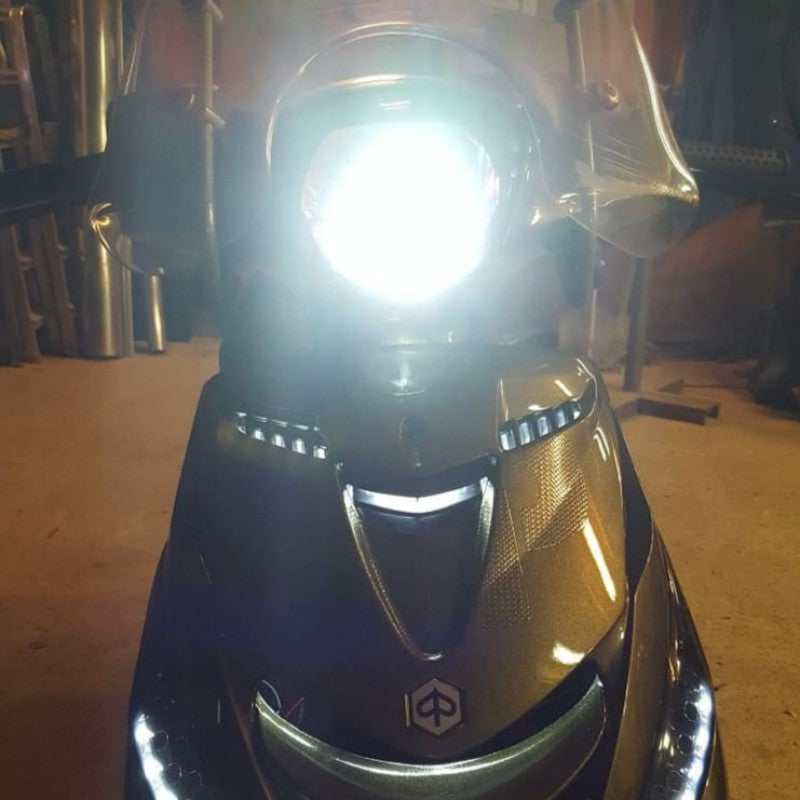

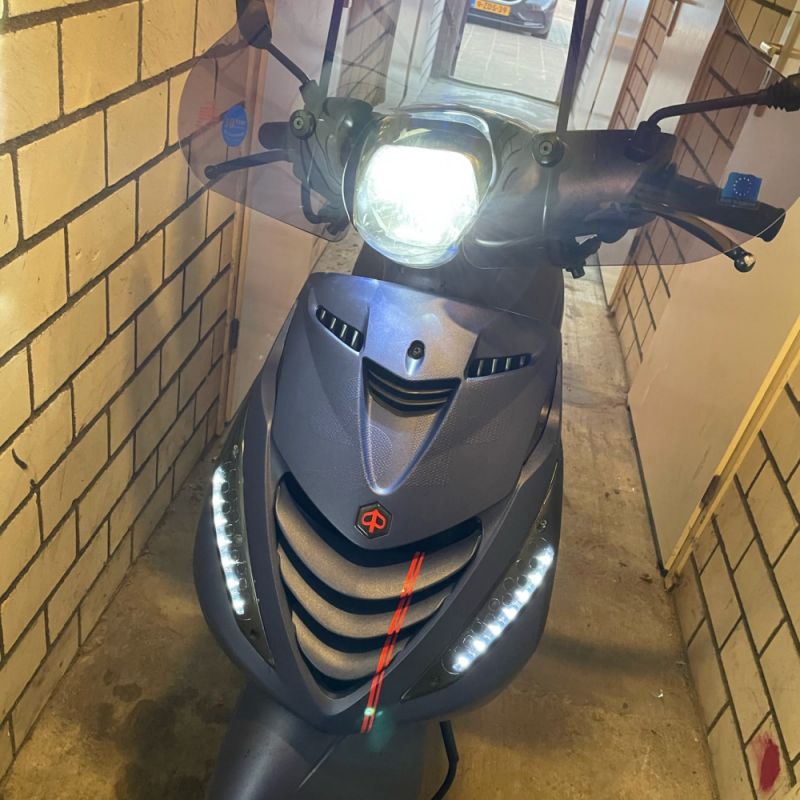

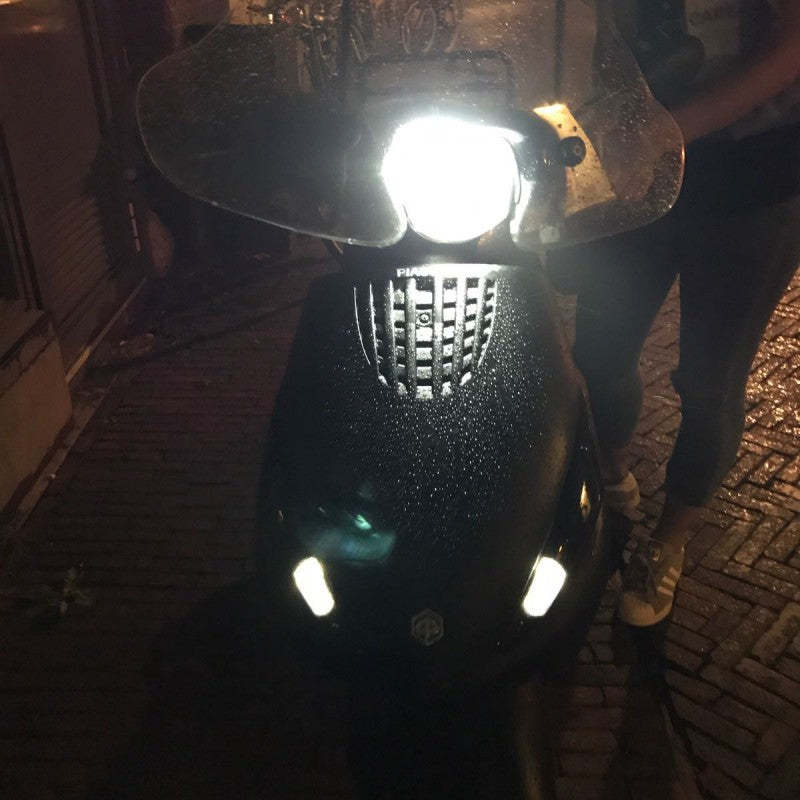

Piaggio Zip xenon look headlight

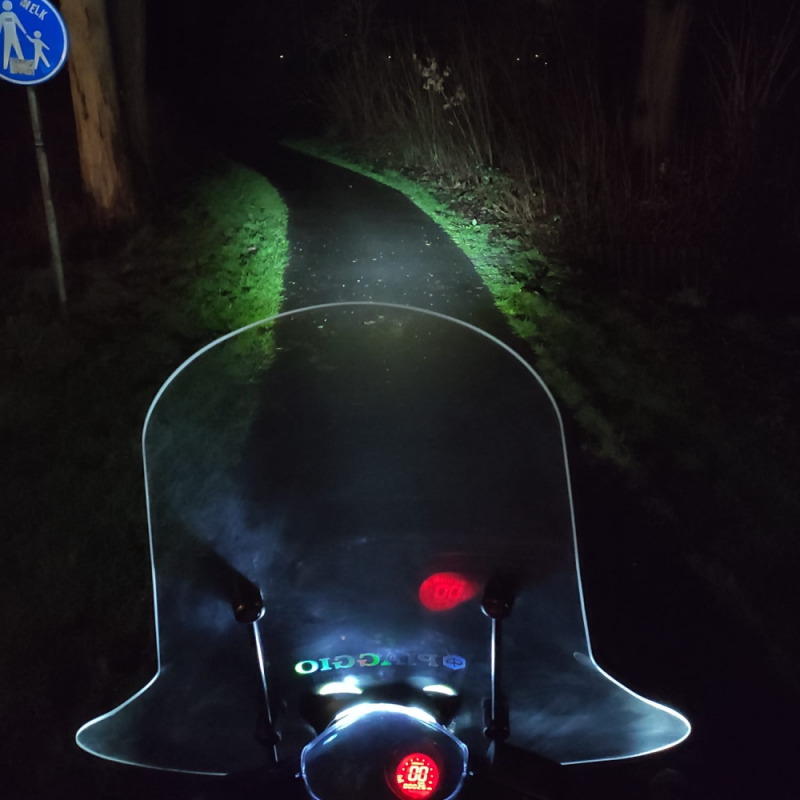

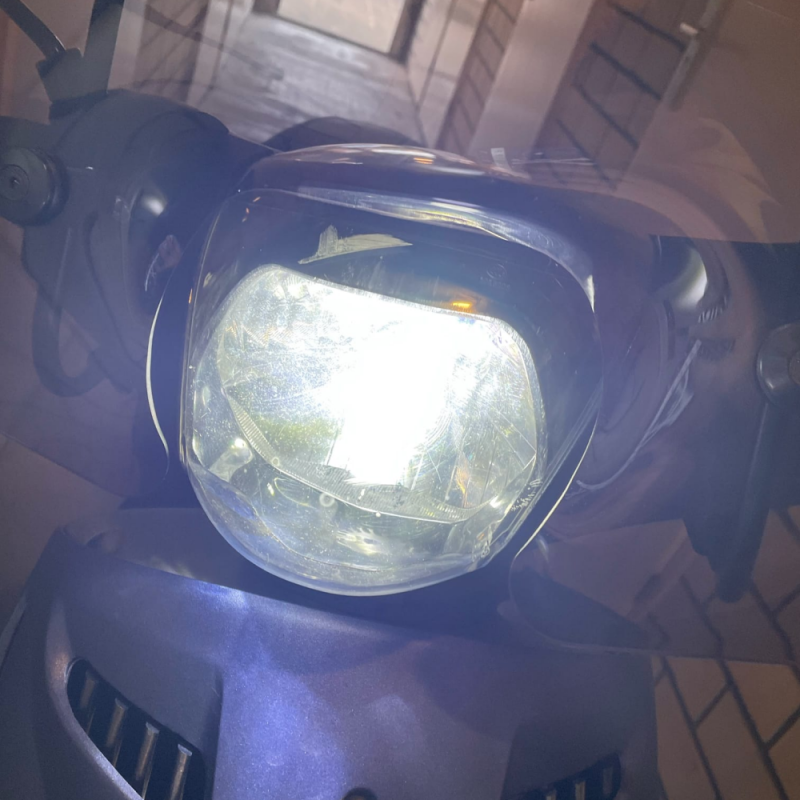

Do you want a white headlight for your Piaggio Zip, similar to xenon lighting? Then this LED headlight is perfect for you! This headlight replaces the original yellow headlight and has excellent beam pattern. The light is very bright and illuminates the road better than the original, so you can see even better in the dark. The white light also makes the LED headlight look much more attractive. This matches the Piaggio Zip's LED turn signals better and gives the scooter a cool, exclusive look.

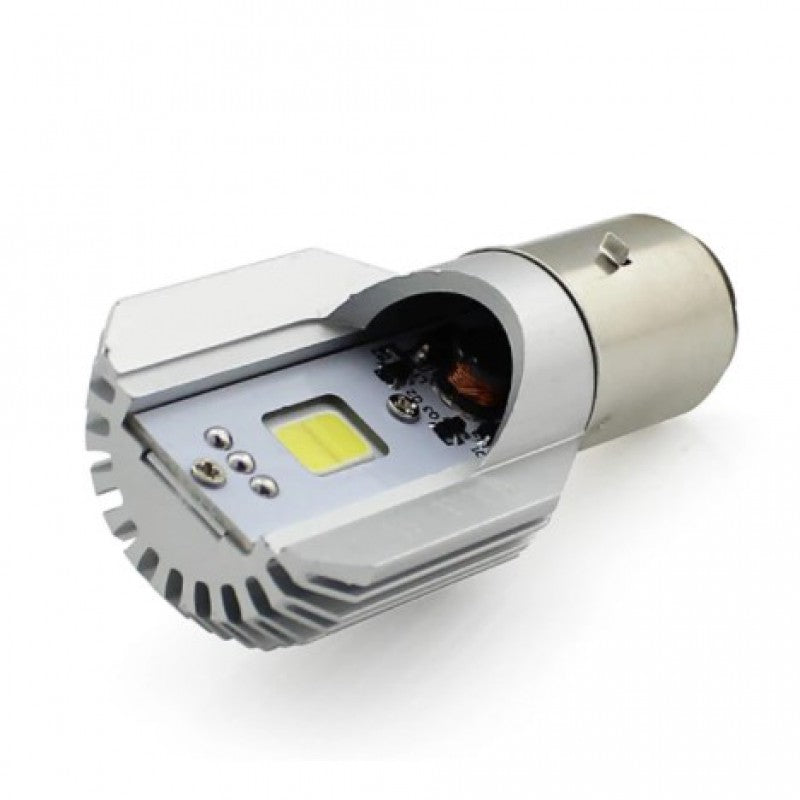

The data of the LED BA20D headlight:

• 6000K (white light)
• 800 lumens
• 6V - 36V
• 12 Watt

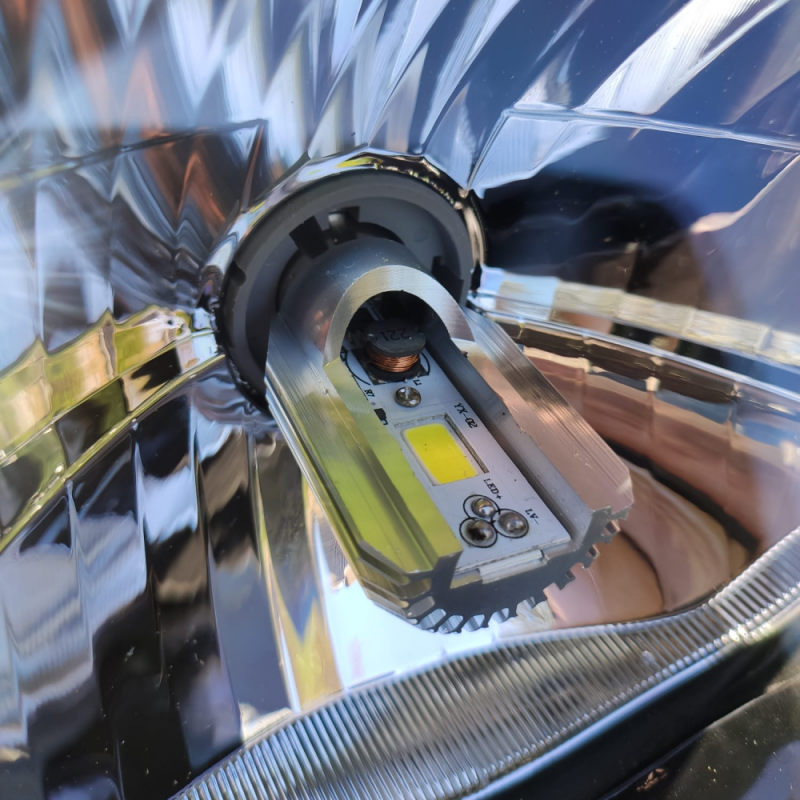

Installing a Piaggio Zip headlight

How do you install an LED headlight in the Piaggio Zip? Installing this LED headlight is very simple. You simply need to remove the inner handlebar cover and screw the headlight into the socket. First, remove the original headlight and its socket from the headlight unit. Do this by turning the socket a quarter turn to the left. Now remove the original bulb from the socket. Do this by pushing the bulb in slightly and then turning it a quarter turn to the left. Then install the LED headlight into the socket by pushing it in slightly and turning it clockwise. The headlight can only be installed in the socket one way. It's important that the two clamps on the back of the socket are properly seated against the bulb. You can tighten the clamps a little with pliers so they fit snugly against the contact points on the headlight. Insert the new headlight into the headlight unit and turn the socket a quarter turn to the right to click it into place.

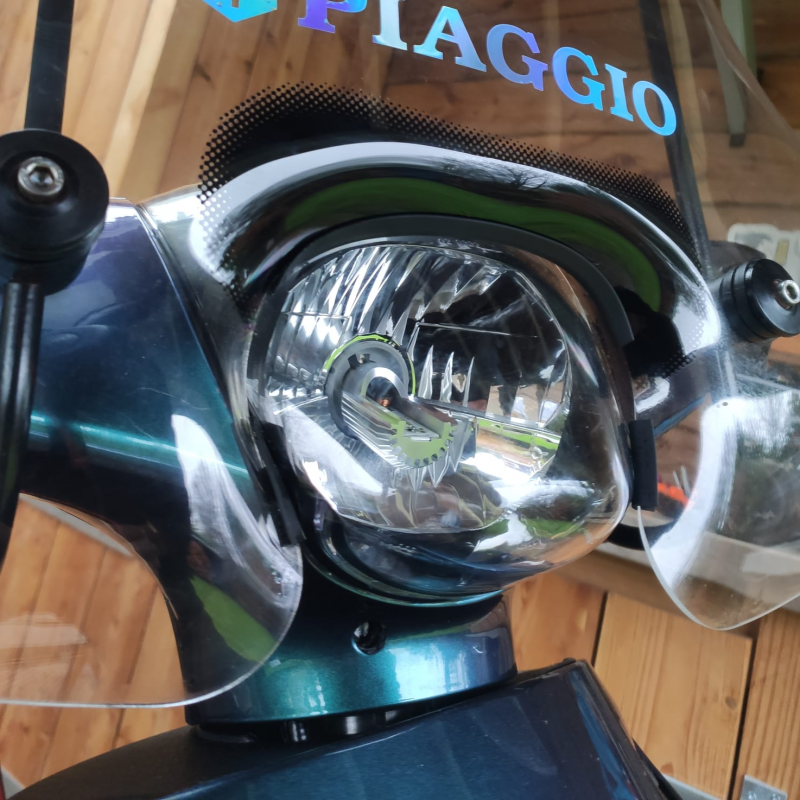

Adjusting the Piaggio Zip headlight

After installing the LED headlight in your Piaggio Zip, you still need to adjust it to the road. This is important to ensure you don't blind oncoming traffic and that you can see the road clearly. You can adjust the Zip's headlight at the front of the scooter. There's a small screw underneath the headlight lens. Use a flathead screwdriver to turn this screw inward to adjust the light downward. First, turn it all the way in to the right, then turn the screw a few turns back to the left. Check in the dark that the road is clear and adjust the headlight if necessary.

The lamp is plug & play, so you don't have to make any adjustments to your wiring harness or electrical system.

• Push the old bulb in and then turn it a quarter turn to the left.
• Push the new LED headlight into the socket and turn it a quarter turn clockwise to secure it.
• Check that the fitting's irons are tight against the headlight; this is important!
• Adjust the LED headlight for clear visibility. This is done using the adjusting screw at the front (in the handlebar cover) below the headlight. You can use a flathead screwdriver to direct the light further downward.

This LED headlight is suitable for the following scooters:

• Piaggio Zip 2-stroke
• Piaggio Zip 4-stroke
• Piaggio Zip i-GET
• Vespa LX50
• Other scooters with a BA20D / H6 headlight connection

Addition to the installation:
If the metal contacts on the socket aren't pressed tightly enough against the bulb, the lamp won't function optimally. The bulb won't make good contact with the electricity and may not function properly, or even fail to light. Therefore, make sure you adjust the metal contacts with pliers so they're pressed firmly against the bulb.

A lamp is a wear and tear product; lighting is never guaranteed.
